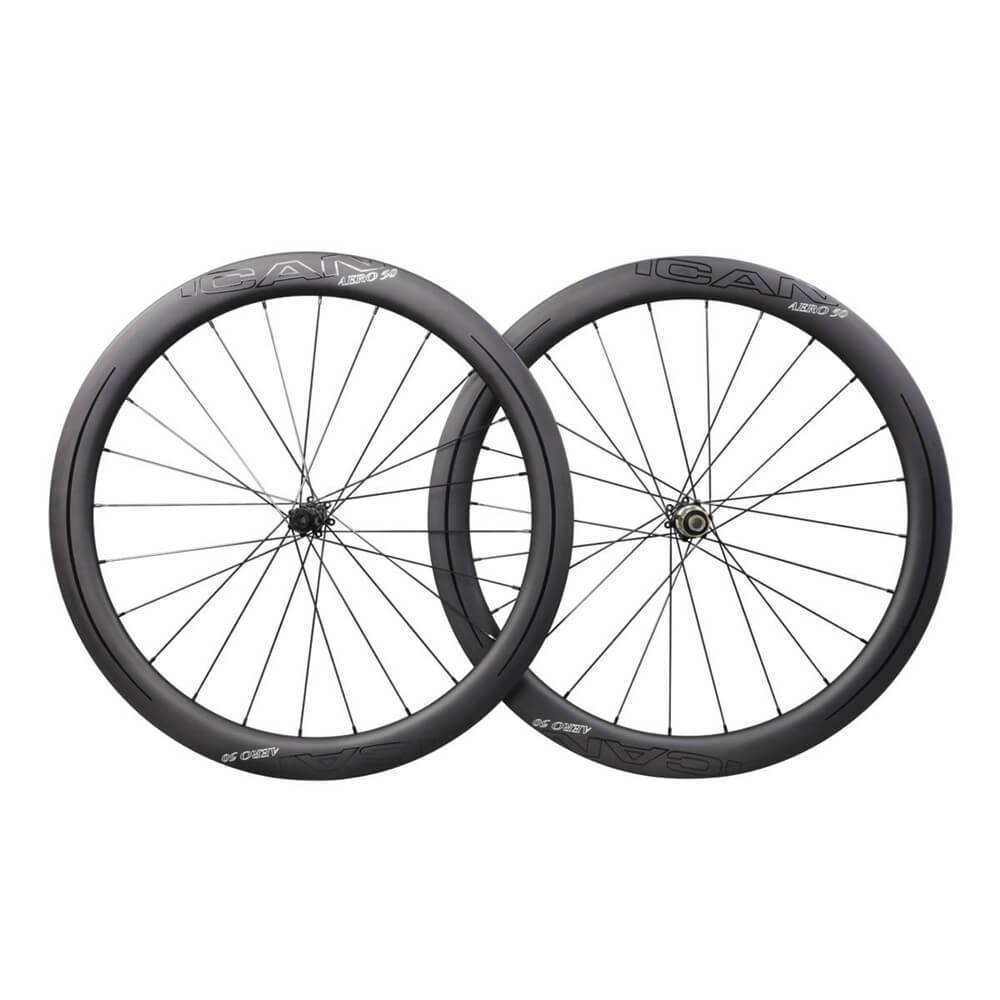

AERO 50 Disc

Product Code: 50C-24/24-UDM-25-NOV411/412-SAP-SL-AERO-100/135-centerlock

Availability:In stock

$670.00 670.00

Available Options

For 2019 we have a new range of road bike aero disc brake wheels. We nicely called this wheel range the Aero range to make it easy for you. The Aero 50 is a 50mm deep section rim. I’m sure you can see what we did there.

The new Aero range is based on our highly successful Fast and Light series. Our FL series was a tubeless aero range of wheels constructed using Toray T700 carbon fiber. We designed these wheels to be light, stiff, and strong while being a wide blunt aero shape.

We wanted to keep those features and make the wheels lighter. Our engineers tried out various new layups and in the end designed a new layup using both T700 and T800 carbon fiber. The new layup allowed the wheels to be around 100g per wheelset lighter and still retain their stiffness and strength while still being the same aero shape.

We then needed an amazing new hubset to go with these wheels. Our engineers came up with the new D01 hubset. A sealed bearing hubset that we have made available in both Centrelock and 6-bolt rotor pattern to allow you to fit the rotors of your choice.

To lace our new hubs to our new carbon fiber rim, we picked the best aero spokes available on the market. We chose Sapim CX-Ray spokes. These spokes offer titanium weight but not titanium flex. They lead the way in their combination of weight and stiffness.

To finish off the package we have equipped this wheelset with a two-year warranty to bring you peace of mind.

Features

Wide Rim Tech

25mm rim wide creates a better, more stable support, while the shape of the tire and rim together creates regular, stable air flow, in short, more aerodynamics, less attrition. provides an ideal basis for 25/28mm tires, the sizes currently popular.

2-Way Clincher Tubeless. Tubes or No-Tubes

Use either traditional tires with tubes, or tubeless tires without tubes. Tubeless tires can provide lower rolling resistance and better protection from punctures.

Sapim CX-RAY As light as a titanium spoke

The CX-Ray still receives the best results in fatigue testing of any spoke. The CX-Ray aero spoke combines excellent aerodynamics with low weight and great strength. Not only are they more aerodynamic, they also make wheels lighter and stronger. Its unique strength and flexibility make the CX-Ray suitable for most bicycle disciplines. CX-Ray spokes are used by top bike racers and triathletes around the world.

UCI Approved

This wheelset has been certified and approved by the UCI (Union Cycliste Internationale), for use in UCI sanctioned road races.

UCI logo

Specification
Type  Carbon Disc Wheelset
Material  Carbon Fiber Toray T700 & T800
Size  700C
Rim

 Drills: 24/24 Holes
 Outer Width: 25mm

 Inner Width: 18.35mm

Depth  50mm
Profile  Clincher Tubuless Ready
Hub

 ICAN D01

Spoke  Sapim CX-Ray Spokes
Spoke Count  Front: 24   Rear: 24
Spoke Pattern  Front: 2-cross
 Rear: 2-cross
Nipple  Alloy  Color: Black
Cassette Compatibility  Shimano 10/11speeds
Wheelset Weight

 Total: 1430+-20g (Centerlock, 12x100/12x142mm)

 Front: 645+-10g  Rear: 785+-10g

Braking Surface  No Braking Surface
Recommended Tyre Size  700 x 25-45mm
Rider Weight Limit  105kg
Guarantee  2 years
Free  1 set of skewer
Packing Size  81.5cm x 17cm x 65.5cm



Recommended Tire Pressure

Below Chart is our recommended tire pressure,you can see more click here

  STANDARD CLINCHER TIRE WITH INNER TUBE TUBELESS TIRES
≤ 65 KG RIDER 23mm - 95/100 psi
25mm - 90/95 psi
28mm - 85/90 psi
23mm - 90/95 psi
25mm - 85/90 psi
28mm - 80/85 psi
65 - 75 KG RIDER 23mm - 100/105 psi
25mm - 95/100 psi
28mm - 90/95 psi
23mm - 90/95 psi
25mm - 85/90 psi
28mm - 85/90 psi
75 - 85 KG RIDER 23mm - 101/106 psi
25mm - 96/101 psi
28mm - 91/96 psi
23mm - 95/98 psi
25mm - 90/95 psi
28mm - 85/90 psi
85 - 95 KG RIDER 23mm - 104/109 psi
25mm - 99/104 psi
28mm - 94/100 psi
23mm - 95/99 psi
25mm - 90/95 psi
28mm - 88/95 psi
IMPORTANT - Please check, and never exceed, the maximum recommended tire pressures on the side of your tire.

Payment Methods

ICAN accepts the following payment methods. VISA, Mastercard via Paypal online. also if you want  WESTERN UNION service or Bank Transfer,then just contact us.

Taxes

All ICAN products price we quote to the customer does not include taxes except the oversea warehouse products. if need to pay the taxes, ICAN does not responsible for any custom duty or import tax.it will be buyer duty.

We can mark the invoice with a Low Declared Value for you, so pls contact us if you have a request for the declared value.

If you buy our oversea warehouse products, and the price including taxes, customers do not need to pay, taxes prepaid by ICAN.

Fast Express Shipping Worldwide

We ship to all countries, by China EMS. See the shipping table to the below for a list of countries. Once we get your order we will ship out the frame immediately begin custom hand-building your wheels with the options you’ve selected. We ship out your wheels by China EMS and always provide a tracking number.

About the ICAN small item, we will ship out by E-packet or DHL Global Mail.this will take 12-20 days.

If you want super fast shipping time, then ICAN offer DHL shipping service, it will just take 3-5 working days, pls contact us to get the shipping price.

Shipping Rates

Country Frame & Wheelset Shipping Rate Expected Delivery
USA                            $80.00 USD               5~ 14 Days
Canada                            $80.00 USD              5 ~ 14 Days
Japan                            $60.00 USD              4 ~ 7 Days
Australia                            $80.00 USD              5 ~ 12 Days
UK                            $80.00 USD              7~ 14 Days
Europe                            $80.00 USD              7 ~ 14 Days
Others                            $80.00 USD-120.00 USD            15 ~ 25 Days



2 Year Free Warranty

ICAN warranty wheels against manufacturing defects, for a period not to exceed two years, from the date of purchase. During that period, ICAN will replace or repair(when possible) the defective part.

Wheelset will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us.

Failure to use the provided warranty card will void your warranty.Save your dated receipt for proof of purchase.

What's Covered

Your wheels are covered against manufacturing defects found within two years. In such cases, if the warranty item cannot be repaired at our expense, we'll replace the warranty item and pay shipping both ways. This warranty only applies to the original owner and is not transferable. To start a warranty claim please contact us at info@icanwheels.com

Situation Warranty
Manufacturing Defects  Within 2 year We will replace the faulty component and pay shipping cost both ways.
After 2 Year Maintenance, upgrade, and repair service at minimal cost.
What's Not Covered Normal Wear and Tear
The following will void your warranty
  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels
This warranty does not cover
  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freewheel bodies, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • All other bicycle components
  • Consequential or incidental damages (where applicable)

Returns

In the event of a manufacturing defect, ICAN will cover the return shipping costs. However, if the defect is deemed to not be due to the manufacturing process, then the customer will be responsible for the return shipping costs.

1.ICAN make a careful test and check before every single item is shipping. In case of bad luck that you receive, ICAN items in broken or defective quality would like a return and refund or replacement. Please contact us within 3 working days and show us as much as possible proof, photos, videos etc.

2. Refund will be granted after we receive the returned items in original condition.

3. New items or Repaired items will be shipped to you as soon as we receive the items for replacement.



1. Which brake pads should we use with those wheels? Regular or Carbon dedicated?

The wheels come with brake pads. Or you can buy the carbon specific pads, such as Swiss Stop yellow pads.

2. How can I buy this wheel with campagnolo freehub?

Just leave a message to us when you make the order. And we will build it for you.

3. Can we order these with no decals?

Yes, we also provide the wheels without logo. Please contact us info@icanwheels.com if you do not need the logo.

4. Can I use regular clincher tires on these wheels?

Yes, you can use regular clincher tire and tube on them.

5. What tire size do you recommend on this wheels?

You can use 700x23-28c tire. Thanks.

6. What length valve should one use with FL40?

60mm will be ideal.

7. Do these have basalt breaking surface?

These are 3k brake surface. The performance is the same as basalt breaking surface.

8. Do I have to pay import duty or taxes for the items?

If you buy our items located in Oversea warehouse, then the taxed prepaid by us, and the price including the taxes and shipping cost.if you buy the items from Chinese warehouse, then buyer need to pay taxes.but we can declare low value to avoid the taxes.pls contact us info@icanwheels.com to know more.

9. What are the length of the spokes on FL40 with novatec hub and sapim cx-ray spoke?

The front is 270mm, and the rear is 278mm and 282mm. Thanks.

10. What is the diameter of the spoke/nipple holes?

It is 7.5mm.

11. Can you tell me the correct tension value of FL40 for front and rear, drive and non-drive?

The spoke tension of the FL40-Novatec-sapim wheels, the front is 13, the rear drive side is 15, and the non-drive side is 5-6. We use the parktools to measure them.

12. Is there a version that has a center lock hub for disk brakes?

We provide 2 kind hubs, 6 bolt rotor brake hub and the center lock disc hub. So if you need a center lock hub for disk brakes, that would be okay, we can build that for you.

13.Does the disc hub is centerlock or 6 bolts?

We both have that; you just need to note that you want the centerlock or 6 bolts when placing the order.

14.How long will it ship?

From Chinese warehouse: 1-3 business days to process the order,we usually use China EMS; it may take 7-12 working days.
From oversea warehouse:one day for process the order, and the shipping time will be 1-5 business days.

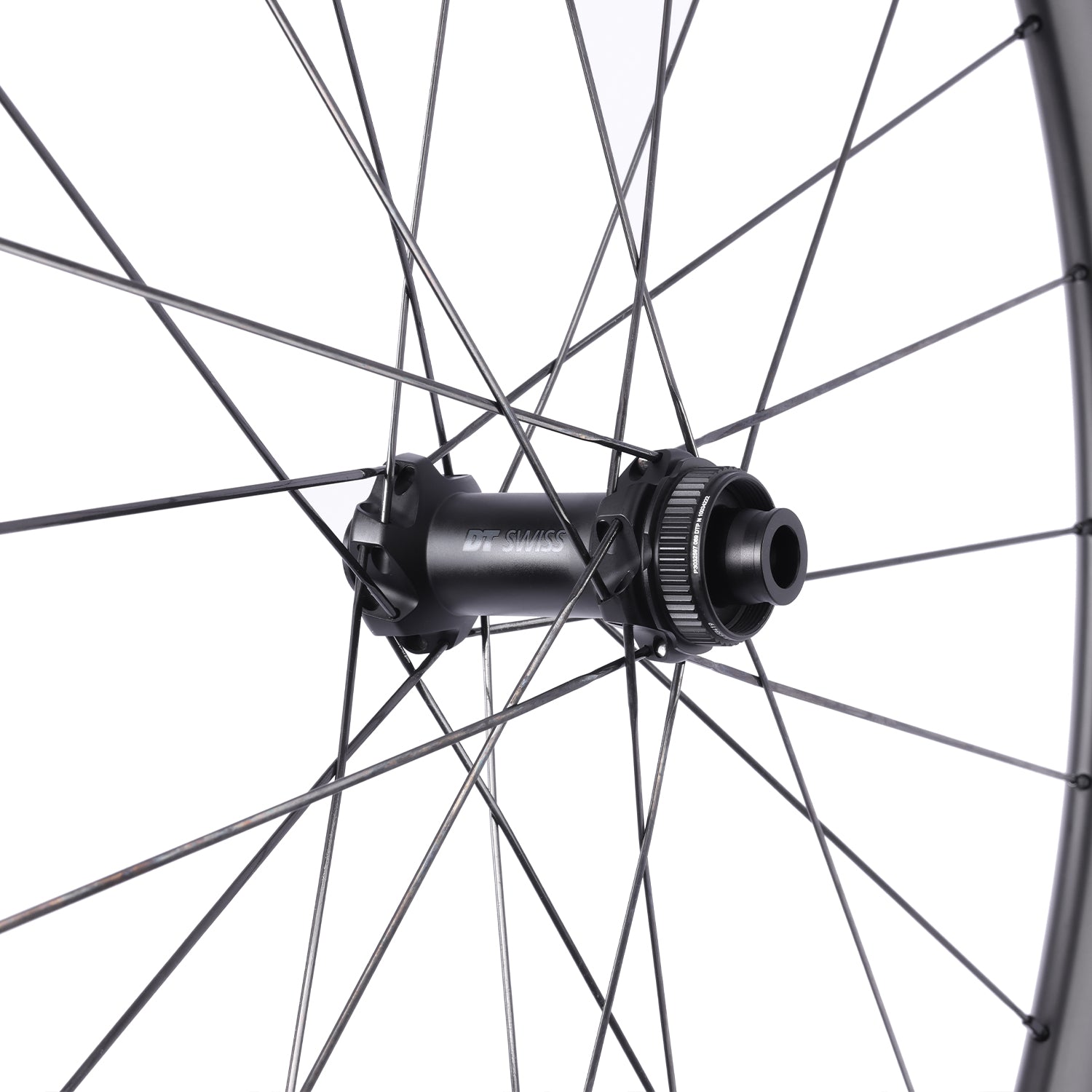

15.Will wheelset with DT hubs be better?

DT Swiss is a famous brand in the hub industry. It is an upgrade option, compared to others hubs.

16.Do I need anything extra to go tubeless?

If you want to go tubeless, you need a tubeless kit - valves, tubeless rim tape and sealant. You can order these online, or source them from a good local bike shop.

17. Why this wheelset is so expensive?

DT hubs have the better performance, lighter weight. It is an upgrade option, and you can buy our popular AERO series wheelset, that is best cost performance.

18.Can I get the spare spokes?

Sorry that we don’t send these for free, you can buy in our online store.

19. Do you have rim tapes?

Hi, yes, the rim tapes will be packaged in the box.

20. If the color is black, is the hub and QR color black too?

When ordering black for the color, the color of the hub and quick release is also black.

21. Hubs and nipples, can they be made in red?

Hi, yes, but please tell us that before you place the order or note that when buying.

22. I’d like to order the hubs in red, please tell me how to order.

You can contact with us before ordering or just note that you want the red hubs when placing the order.
