The gravel bike is more nimble on the road compared to its mud-ready cyclocross equivalent, but strong enough to tackle the rough surface compared to its endurance equivalent. For a gravel bike to handle these kinds of terrains (course gravel tracks, farm tracks, and bridle paths), it needs an ideal gravel bike frame; the ICAN Gravel Bike Frame GRA02.

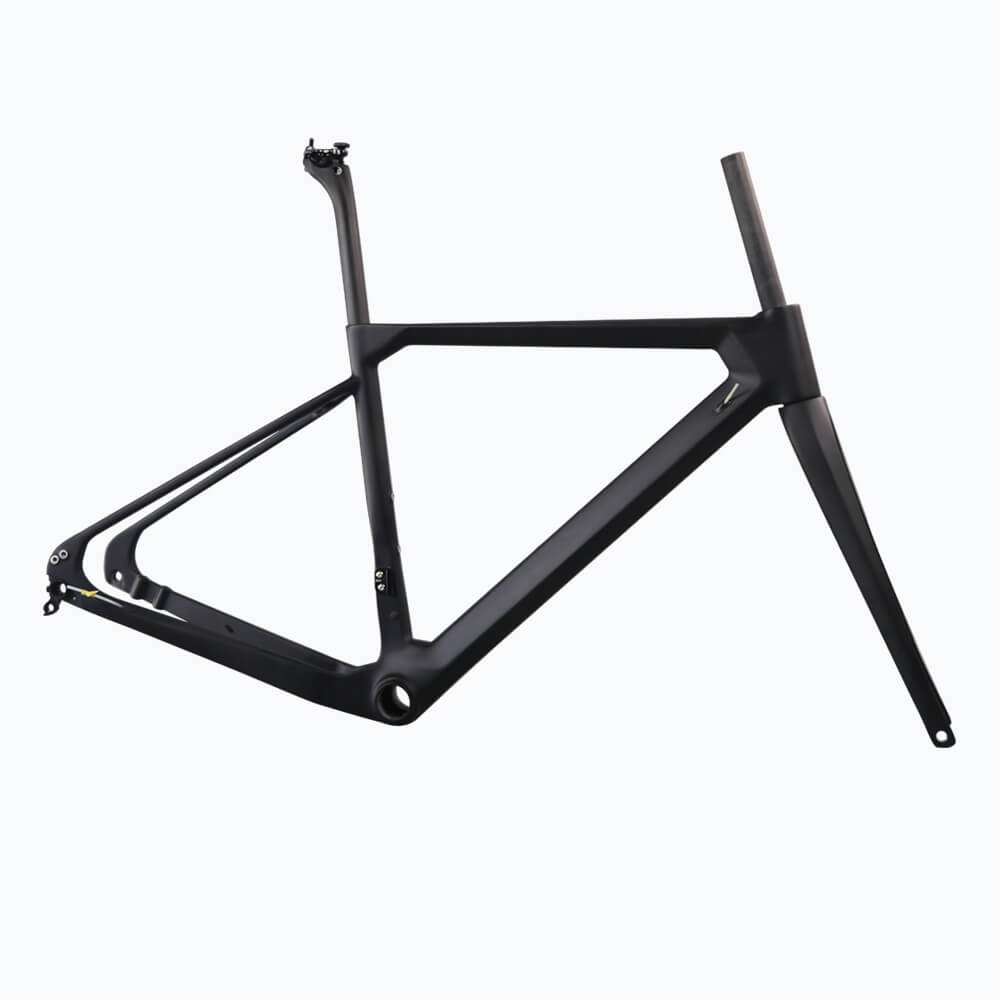

The GRA02 is a full carbon mechanical frame and fork set that is made from Toray T700 carbon cloths weaved in a UD Matt finish. The use of carbon fiber as the primary raw material makes the frame lighter and therefore more efficient than its aluminum equivalents. The GRA02 is super-light weighing only 1,530g (450g for the fork and 1,080g for the frame).
Off-road riding presents its set of challenges; weather and road conditions. If you are riding on a muddy track, you need a frame and fork that offers safety features for braking. The fork of the GRA02 is stiff enough to endure sudden stops. This fork is also compatible with disc brake wheelsets which allow you to stop faster.
The frame supports an internal cable routing system that is perfect for hydraulic and cable brakes.
ICAN’s Gravel bike GRA02 frame and fork set is compatible with a wide variety of tires including CX-700 * 42C wheelsets, Road disc-700 * 28C wheelsets, and MTB-27.5 * 1.95” wheelsets.
This frameset is available in two options of color; pink with highlights of blue and natural black UD Matt.
The GRA02 is a full carbon mechanical frame and fork set that is made from Toray T700 carbon cloths weaved in a UD Matt finish. The use of carbon fiber as the primary raw material makes the frame lighter and therefore more efficient than its aluminum equivalents. The GRA02 is super-light weighing only 1,530g (450g for the fork and 1,080g for the frame).
Off-road riding presents its set of challenges; weather and road conditions. If you are riding on a muddy track, you need a frame and fork that offers safety features for braking. The fork of the GRA02 is stiff enough to endure sudden stops. This fork is also compatible with disc brake wheelsets which allow you to stop faster.
The frame supports an internal cable routing system that is perfect for hydraulic and cable brakes.
ICAN’s Gravel bike GRA02 frame and fork set is compatible with a wide variety of tires including CX-700 * 42C wheelsets, Road disc-700 * 28C wheelsets, and MTB-27.5 * 1.95” wheelsets.
This frameset is available in two options of color; pink with highlights of blue and natural black UD Matt.
Specification
| Type | Gravel frame disc |
| Frame | GRA02 (Flat mount) |
| Seatpost | 27.2*300mm |
| Material | Toray T700 carbon |
| Weave | UDM/Painting |
| Weight | 450g(Fork), 1080g( Frame: M) |
| Headtube | 1-1/8",1-1/2" |
| BB | BB86 |
| Available size | 49/54/56/58cm |
| Model | Mechanical and Di2 (2 in 1） |
| Cable plug | Internal Cable Routing |
| Max tire size | MTB-650B: 48mm, Road disc-41mm |
| Axle | 100*12mm/142*12mm |
|
Disc |
160mm |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
