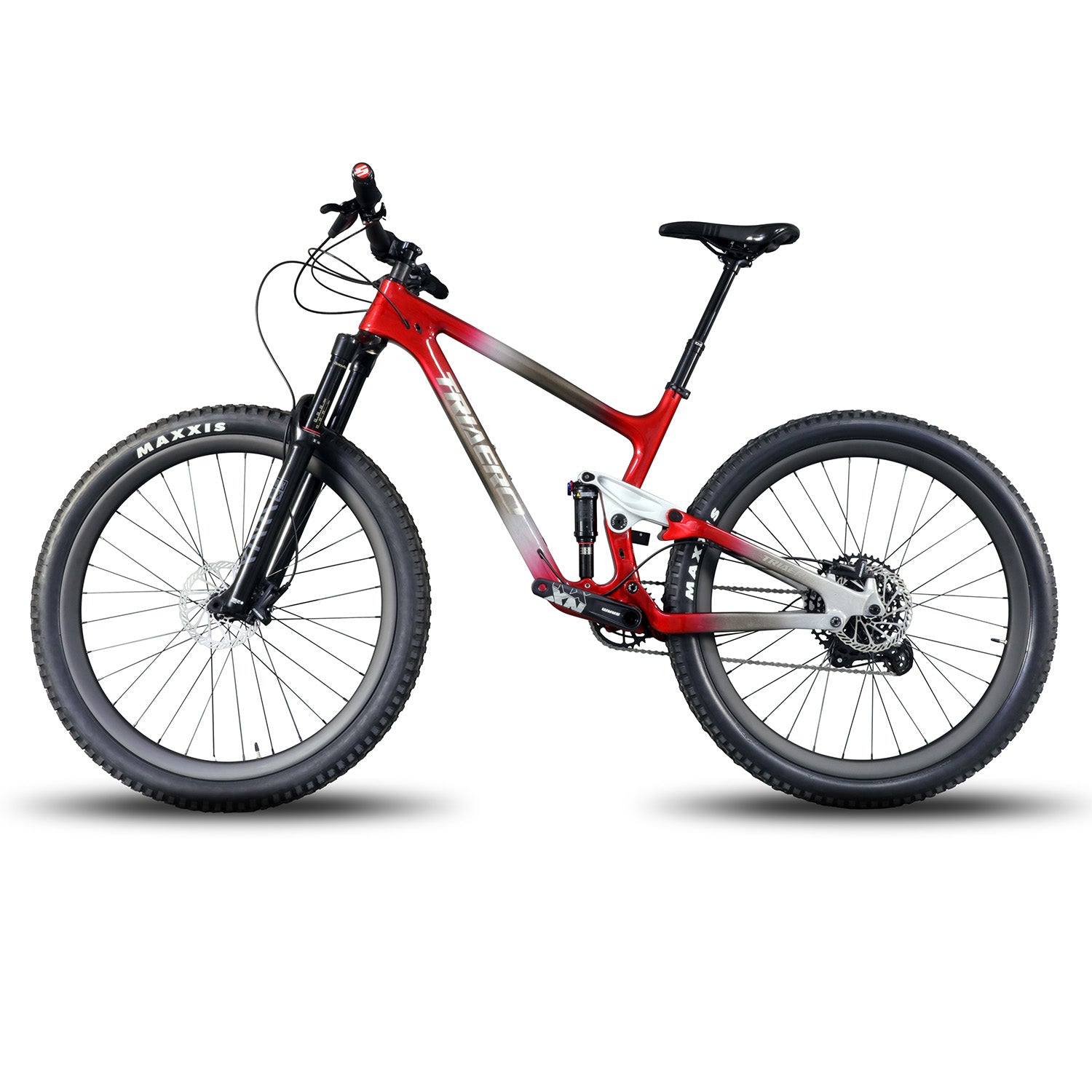

Trail Bike P1-Custom Paint-Sram NX EAGLE
- 29er full suspension frame
- Boost 148mm rear spacing
- 200x51mm rear shock
- 130-140mm travel suspension fork
- BSA bottom bracket
- Sram Eagle NX groupset
- $5,154.00
- $5,154.00
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Fast Delivery
15-Year Quality Assurance
2-year Warranty
Do you like energetic on climbs? ICAN Full Suspension MTB Frame P1 is specially designed for trail. You can ride fun in mind, finding every bit of enjoyment out of their riding.
Well-known brand groupset provides you with quality assurance. It won't waste your much time to find suitable replacements when you need a maintenance.
140mm of travel are well equipped for trail-centre riding, capable of tackling climbs and descents easily.
29inch wheels is a great option on trail bikes, providing stability, smoothing out any bumps and enabling a faster ride. If you want a bike agile and fun on the trail, a mullet or 27.5 is your another option. Contact us to custom build your bike!
Equiped with Maxxis 29x2.3 tires, which are narrower, is good for speed and pedaling efficiency on smooth terrain. Meantime, it improves the weight of the trail bike.
A dropper post supports to adjust the different heights, allowing you to flexibly respond to different terrains.
Branded Rockshox rear shock provides good quality assurance.
Specification
Frame:
Model: P1 Frame
Type: Trail Bike
Material: Full Carbon Toray T700
Size: S/M/L
Headset: 1-1/8”, 1-1/2” Internal
Bottom: BSA73 Boost
Shock Size: ROCKSHOX MONARCH RT 200X51 HVI ML3 F 320 D3 , eye to eye: 22.2*8mm
Dropout: 12*148mm
Thru Axle: 12*148mm, Boost*1.5mm
Wheelset:
Model: AM2940 Carbon Mountain Bike Clincher Tubeless Ready
Material: Full Carbon Toray T700
Rims: AM2940, 32/32H
Width: inner: 35mm, outer: 40mm
Depth: 25mm
Finish: UD Matt
Hubs: Novatec D791SB/D902SB, 6 bolts
Spokes: Sapim Basic Leader Round Spokes
Freehub: Shimano 11 speed
Groupset: Sram NX Eagle
Chain: CN NX EAGLE 126LI PWR.LCK 12S SLVR
Cranksets: FC NX EAGLE b148 DUB 170 BLK 32ST
Cassette: CS PG1230 EAGLE 11-50T
Bottom Bracket: BB DUB BSA 73MTB
Shifter-Lever: SL NX EAGLE TRIGGER
Derailleurs-Rear: RD NX RAGLE
Brakes-Disc-Lever clamp: MMX CLAMP BLK LEFT STAINLESS BOLT
Brake-Disc-Lever clamp: U-CLAMP BLK BOLT LEFT/RIGHT
Brakes-Disc:DB LVL BLK L/F DIR 800
Brakes-Disc: DB LVL SJ BLK R/R DIR 1800
Rotors: Sram, Front & rear 160mm
Other Components:
Fork: Rockshox Yari 29 plus, Black, Travel 140mm, 15*110mm axle
Maxxis Tire: Maxxis 29*2.3’’ Minion
Seat Post: EXP Adjust Seat Post Manic 150mm
Saddle: Carbon SD10
Handlebar: HB15 800mm Full Carbon
Bottle Cage: Full Carbon BC02
Stem: ST35 Alloy
Pedal: Alloy
Total weight: 14.2kg
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
