Flyee & FL Max Disc Wheels
- Light road bike disc frame
- UCI approval frame
- Full internal routing
- T47 bottom bracket
- UDH hanger
- 32mm tire supported
- More affordable price
- $2,972.00
- $2,972.00
- Unit price
- per
10 customers are viewing this product
Couldn't load pickup availability
Fast Delivery
15-Year Quality Assurance
2-year Warranty
Introduction

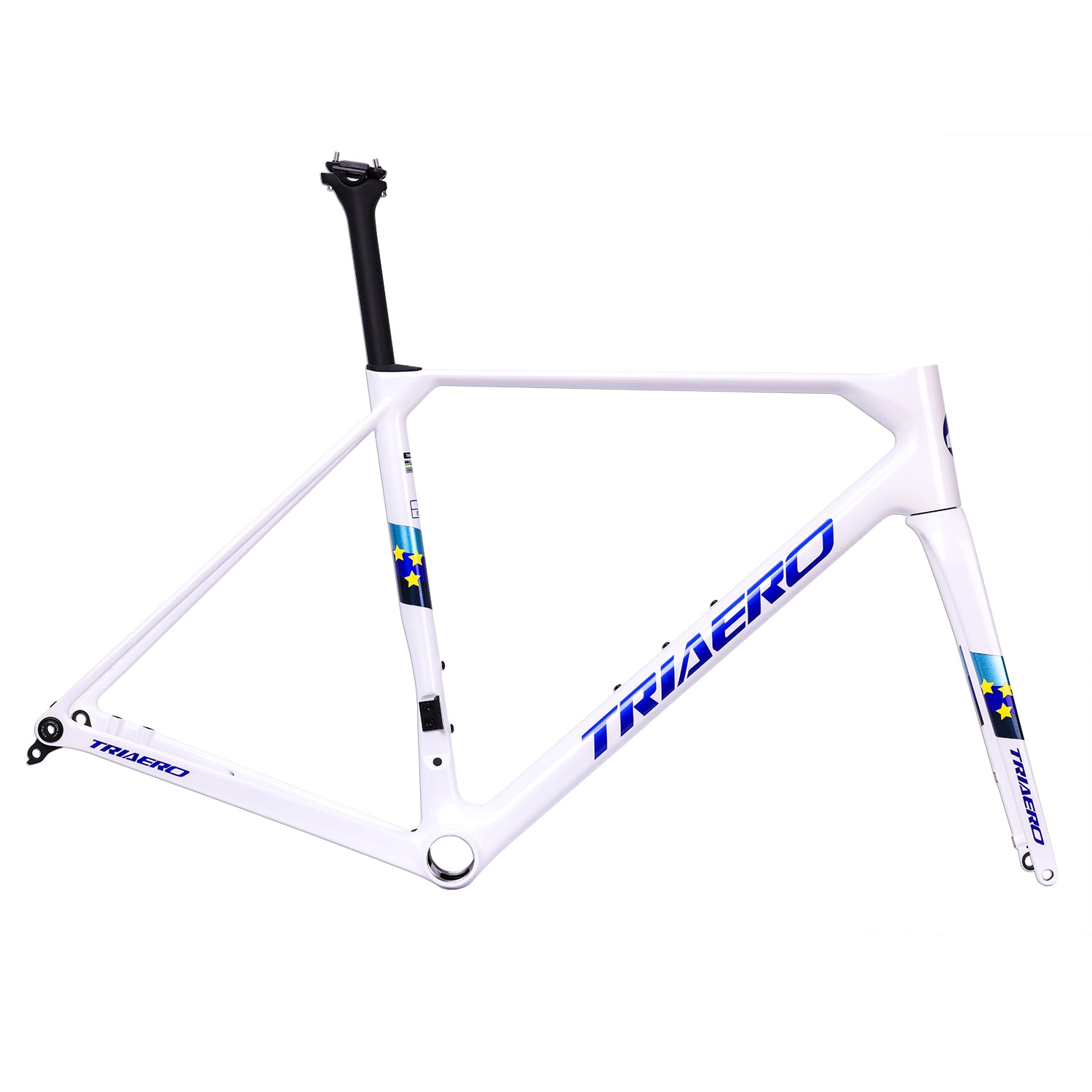

Experience a smoother, faster ride with the Flyee T47 BB road bike disc frame. Its internal routing enhances aerodynamics while its new design offers a lighter weight. With wider rear spacing and UDH hanger, this frame is designed for peak performance. Upgrade your ride with the Flyee.
Specification
Type: Light weight road bike disc frame
Frame: Flyee (Flat mount)
Material: Toray T700 & T800 & T1000 carbon
Weave: Painting
Seat post: 27.2mm round, 0mm offset
Weight: Fork-365+-10g (Painting)
Frame in Glossy Silver Gradient Blue: 52cm-867+-20g
Frame in Glossy W2311: 52cm-890+-20g
Frame in Glossy Dark Red: 52cm-875+-20g
Headtube: 1-1/2",1-1/2"
BB: T47
Available size: 47/ 50/ 52/ 54/ 57cm
Max tire size: 700C x 32mm
Cable plug: Internal Cable Routing
Axle: 100*12mm/142*12mm
Rotor Size: Front-160mm; Rear-140mm
Package included: Frame+fork+seatpost+thru axles+hanger
If you order the handlebar together, the package included will add handlebar and spacers.
Features：
Lightweight and Stiffness
The Flyee frame masterfully balances lightweight design with exceptional stiffness. Utilizing cutting-edge materials and advanced manufacturing techniques, the frame is incredibly light, ensuring swift acceleration and agile climbing. Simultaneously, its optimized stiffness guarantees efficient power transfer, providing riders with a responsive and stable experience. This combination of lightweight and stiffness ensures peak performance for competitive cyclists.
Versatile Tire Clearance
Our Flyee road bike frame offers versatile tire clearance, allowing you to fit a wide range of tire sizes from 25c to 32c. This flexibility ensures optimal performance and comfort on various terrains, providing you with the adaptability to switch between smooth road rides and rougher paths effortlessly.
Internal Cable Routing
Achieving a clean, aerodynamic profile, the internal cable routing not only enhances the bike's aesthetics but also protects cables from the elements, ensuring smoother operation and reduced maintenance.
T47 Bottom Bracket
The T47 bottom bracket offers enhanced durability and superior performance. Its threaded design provides a secure and creak-free fit, while the larger diameter allows for increased stiffness and power transfer. This bottom bracket standard also simplifies maintenance and ensures compatibility with a wide range of cranksets, making it a reliable and efficient choice for serious cyclists.
Universal Derailleur Hanger (UDH) Technology
Our Flyee incorporates the cutting-edge UDH system, which represents a significant advancement in derailleur hanger design. With UDH, finding a compatible hanger becomes straightforward, no matter where your adventures take you. This feature is a game-changer for riders who value reliability and ease of maintenance, especially in remote areas or during long tours.
Custom Painting Service for Personalized Style
Elevate your Flyee road bike with our bespoke painting service, offering unparalleled customization to reflect your unique style and personality. Our service allows you to create a personalized paint job that truly makes your bike stand out. Visit our painting website at icancustompaint.com to bring your dream design to life.
Specification
| Type | Carbon Disc Wheelset |
| Rims | Superlight FL Max Disc Wheels |
| Material | 100% Carbon Fiber Toray T700 & T800 |
| Size | 700C |
| Rim |
Drills: 24/24 Holes 52mm Depth: Outer Width: 27.3mm Inner Width: 21mm |
| Depth |
38mm 52mm |
| Profile |
Clincher Tubeless Ready |
| Hub |
ICAN D28 Centerlock, 12x100/12x142mm |
| Spoke | Sapim CX-Ray Spokes |
| Spoke Count | Front: 24 Rear: 24 |
| Spoke Pattern |
Front: 2-cross Rear: 2-cross
|
| Nipple | Alloy Color: Black |
| Cassette Compatibility | Shimano 11 speed |
| Wheelset Weight |
FL38 Max: 1300+-20g Front: 598+-10g Rear: 702+-10g FL52 Max: 1385+-20g Front: 645+-10g Rear: 740+-10g |
| Braking Surface | No Braking Surface |
| Recommended Tyre Size | 700 x 25-32mm |
| Rider Weight Limit | 105kg |
| Guarantee | 2 years |
| Package Included |
A pair of Wheelset Valves Rim Tape |
| Packing Size | 81.5cm x 17cm x 65.5cm |
Warranty Policy
Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.
Product Group:
Frame and Rim
Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.
Coverage:
2-year warranty from the date of purchase.
Conditions:
- If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
- If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
- The Warranty program is not transferable and only applies to the initial purchaser.
This warranty does not cover：
- Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
- Products which have been incorrectly installed and/or adjusted.
- Issues brought about by neglect or poor maintenance.
- Surface finish and cosmetic treatments (anodizing, decals, etc.)
- Crash damage.
- Consequential or incidental damages (where applicable)
- Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
- Counterfeit products
- Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service
Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.
The following will void your warranty
- Misuse (Jumping, trick riding, etc.)
- Modification of wheels
- Tire pressure exceeding 140psi
- Improper assembly
- Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
- Use of brake pads not designed for carbon wheels
More details can be known from "Warranty & Return".
