50mm Pie Disc Wheels
  • Clincher & Tubeless ready
  • 23mm inner width
  • 12K Filament-wound finish
  • D19 hub, centerlock
  • Pillar SA1423 spokes
  • Recommended Tyre Size: 700 x 25-47mm
$797.00
$797.00
Freehub: Shimano 11 Speed
Subtotal: $797.00
10 customers are viewing this product

Fast Delivery

15-Year Quality Assurance

2-year Warranty

ICAN 50mm Pie disc wheels

50mm Pie Disc Wheels

$797.00
ICAN 50mm Pie disc wheels
50mm Pie Disc Wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels
ICAN 50mm Pie disc wheels

50mm Pie Disc Wheels

$797.00
Freehub: Shimano 11 Speed
Description

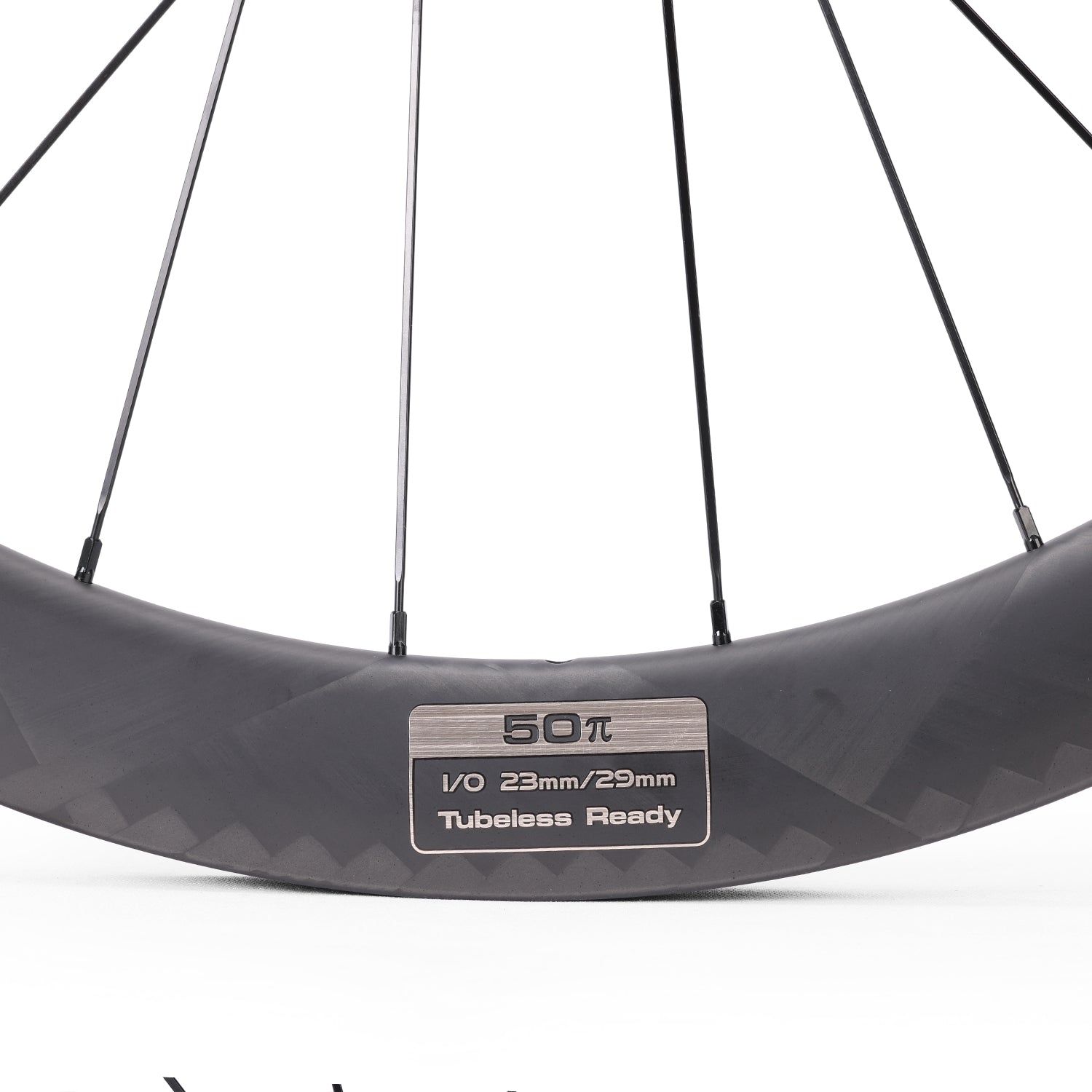

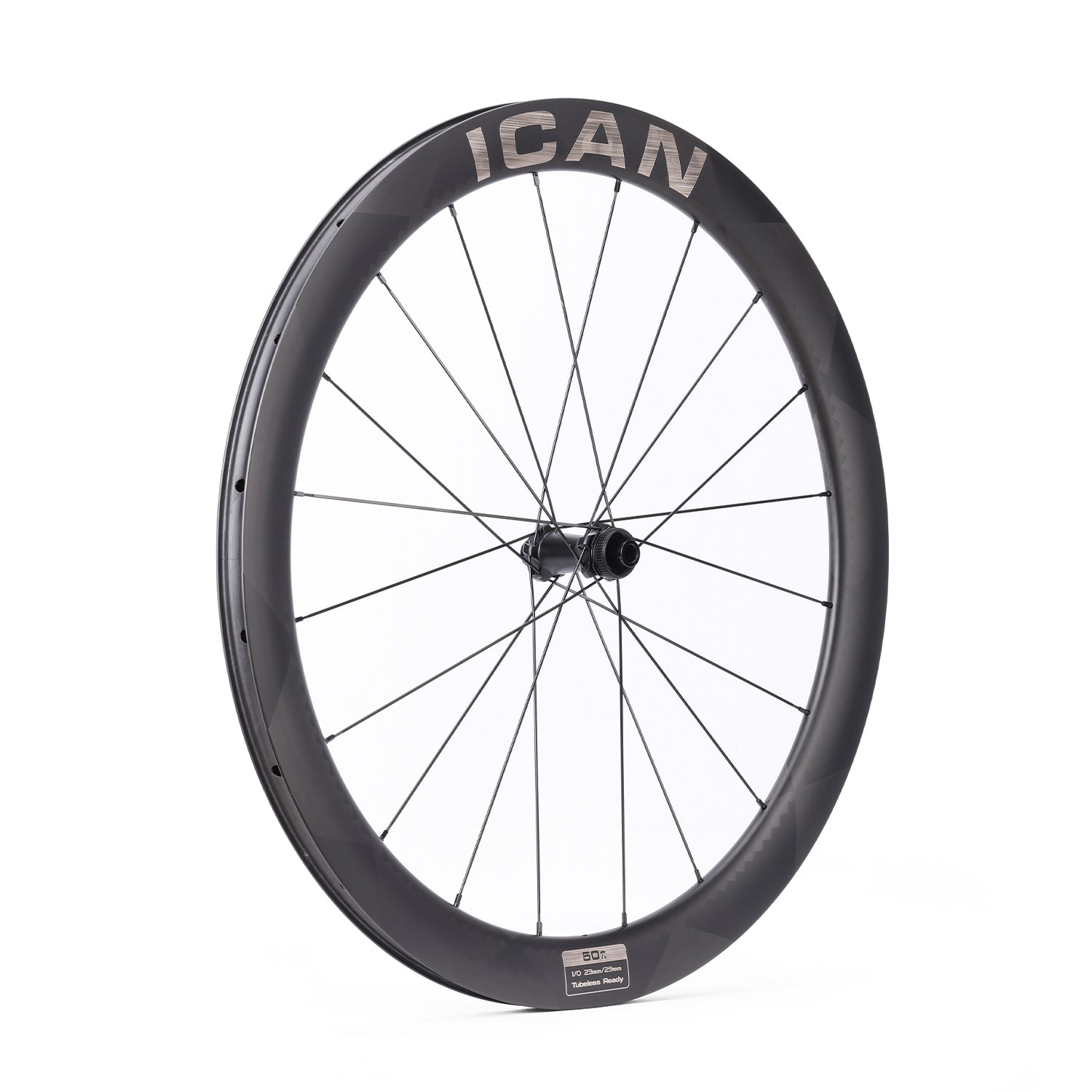

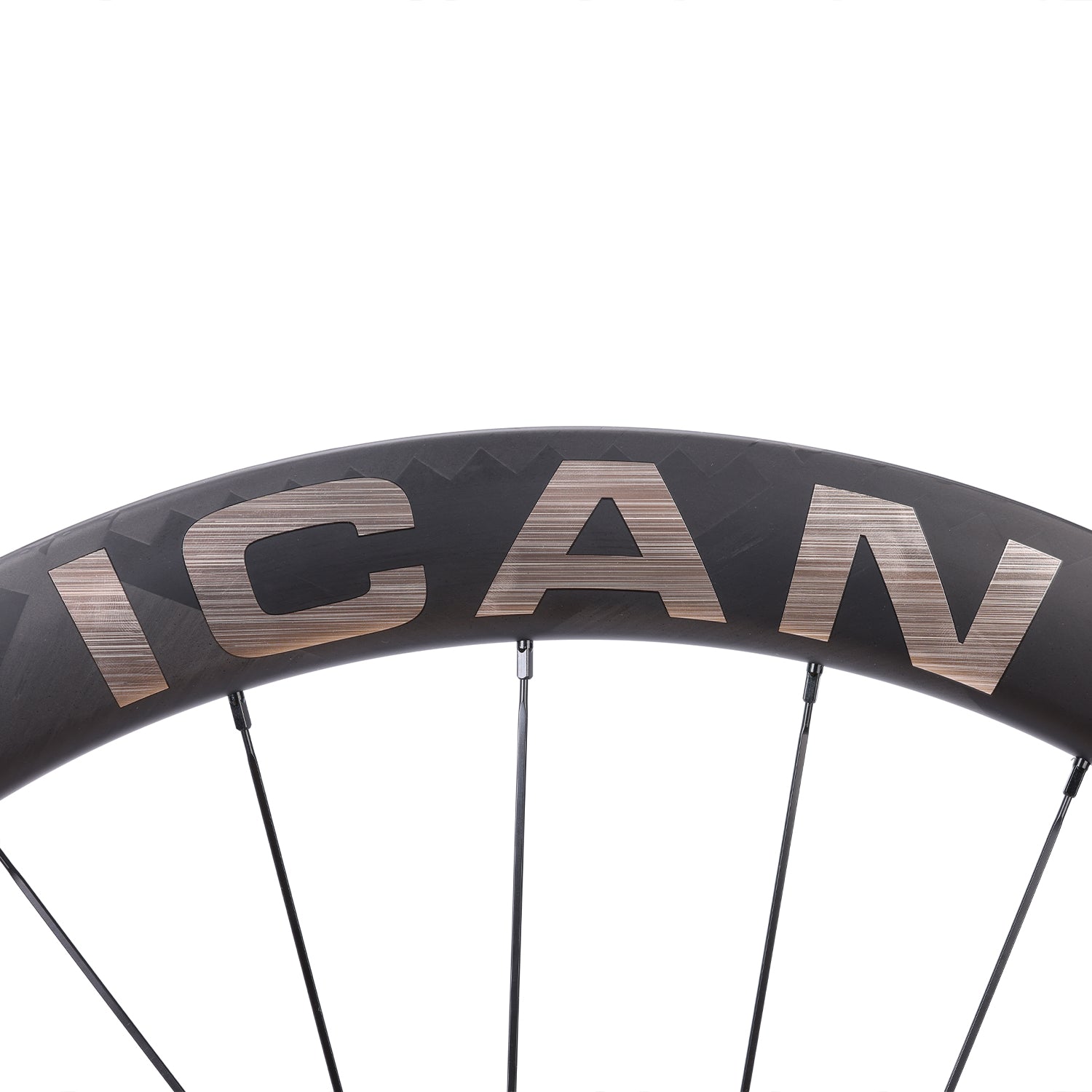

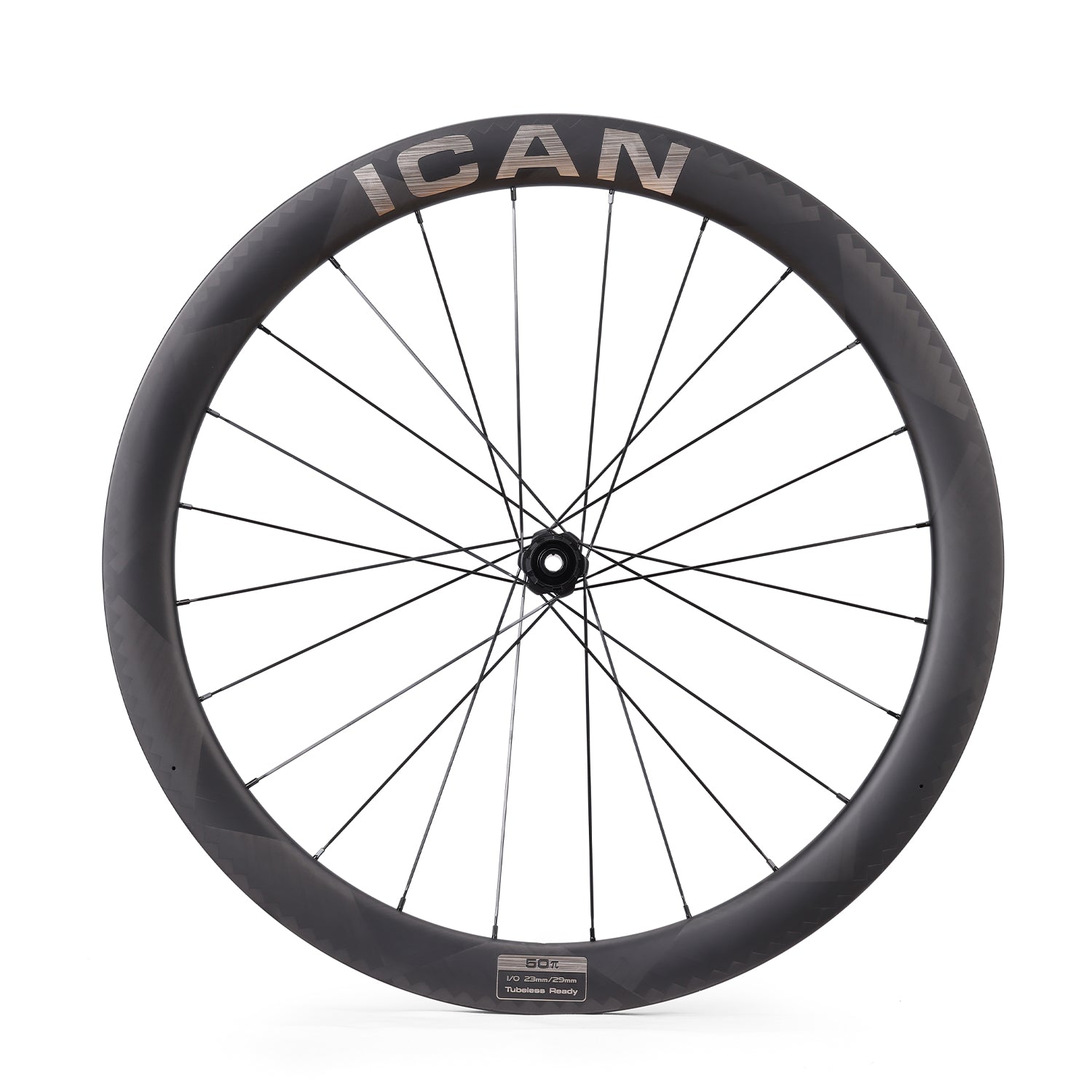

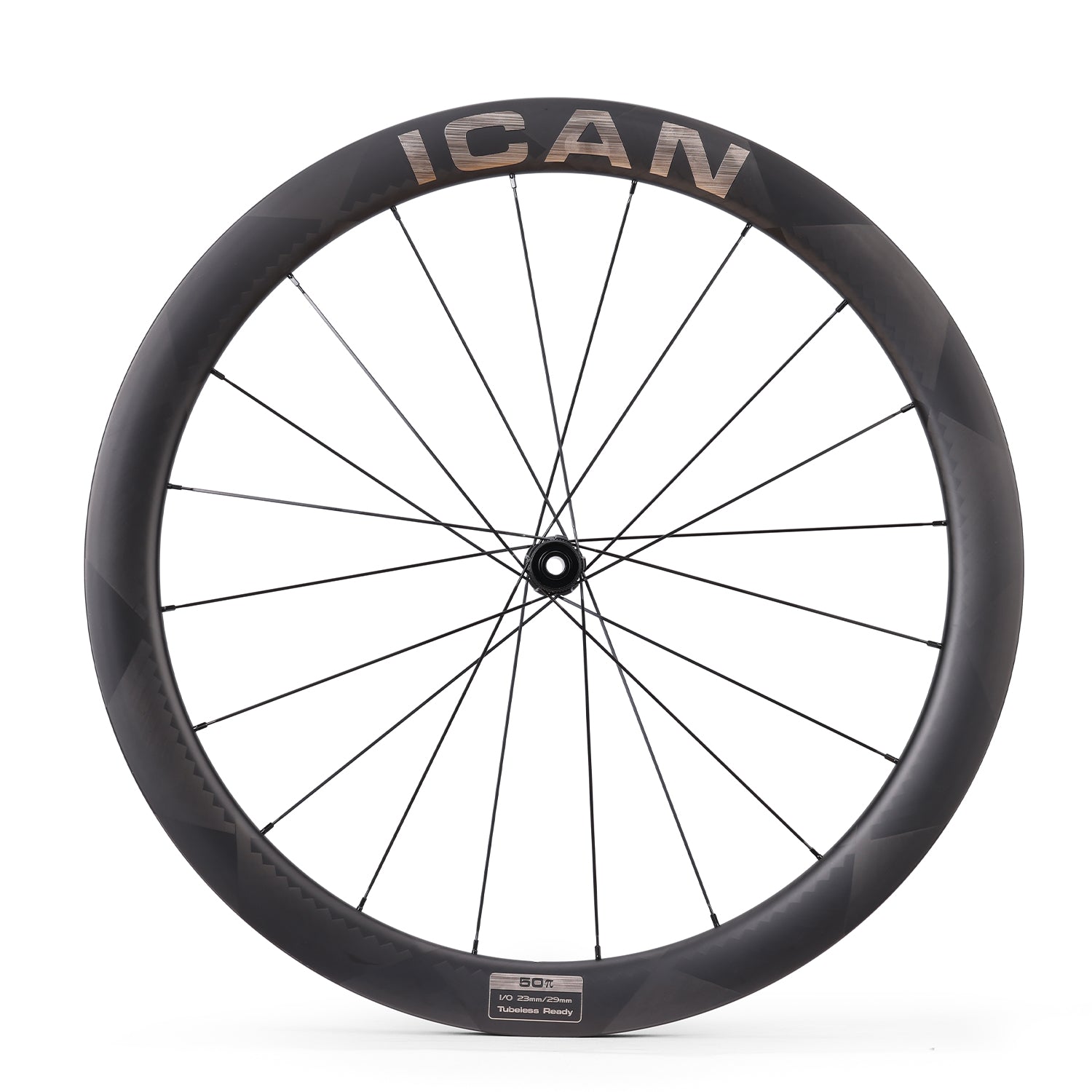

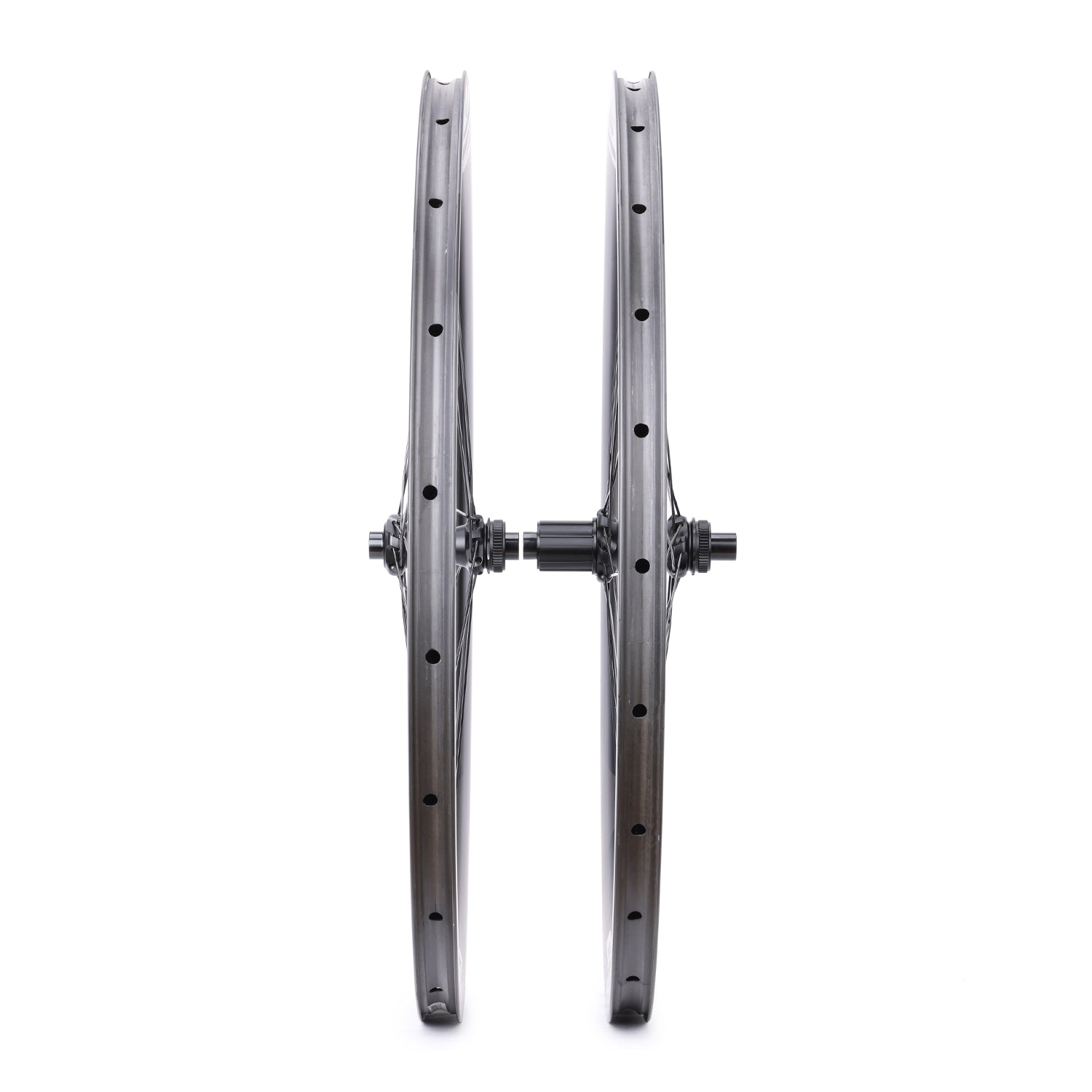

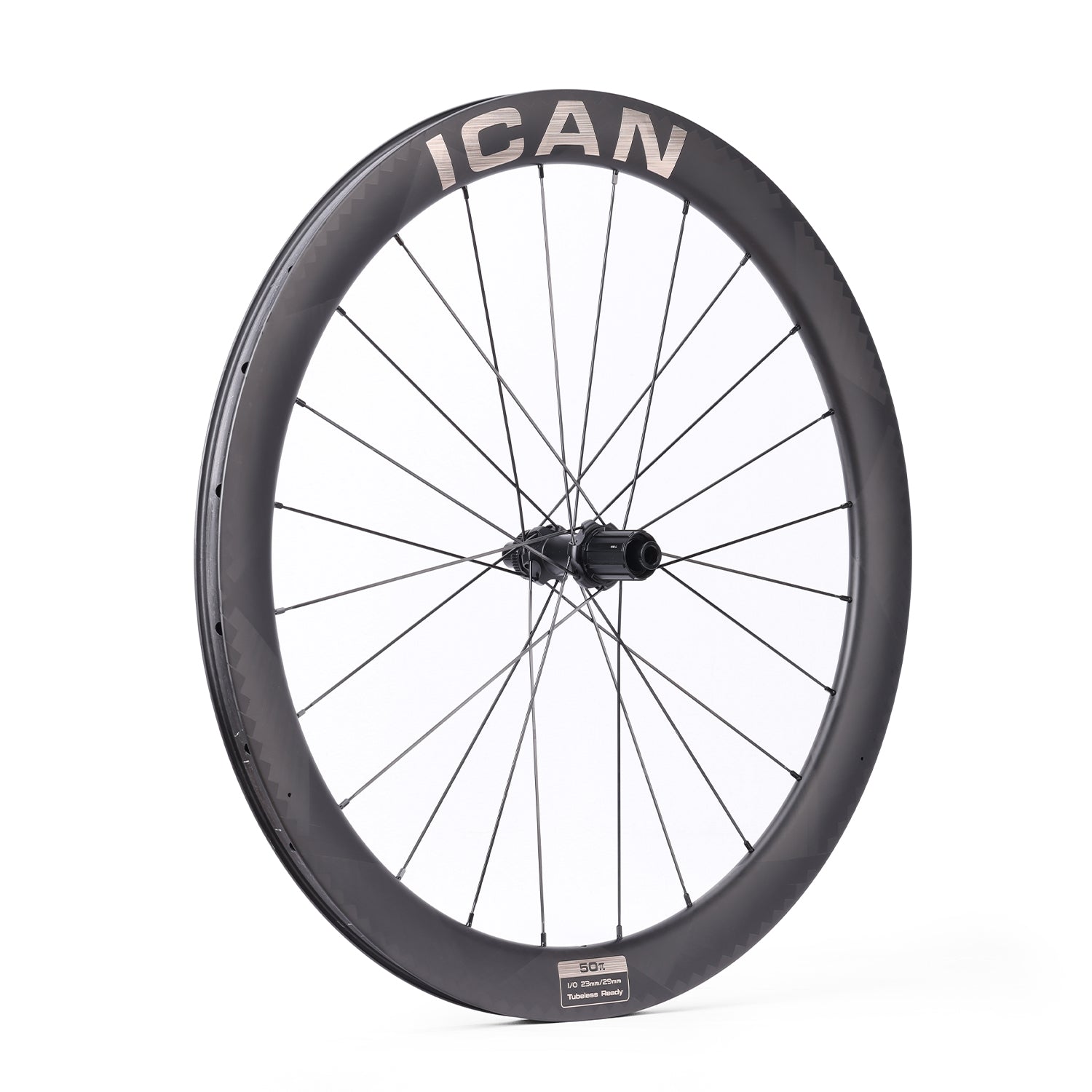

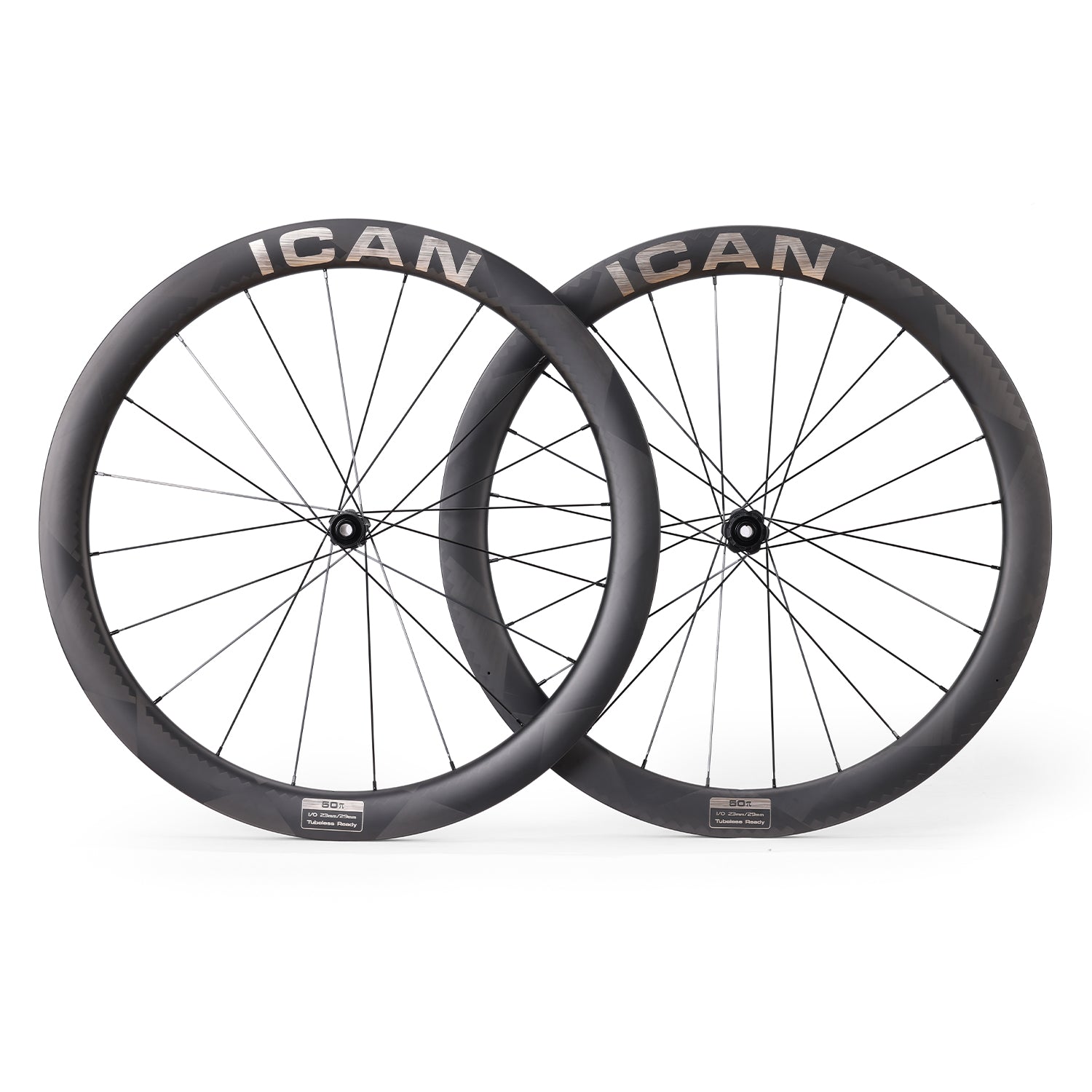

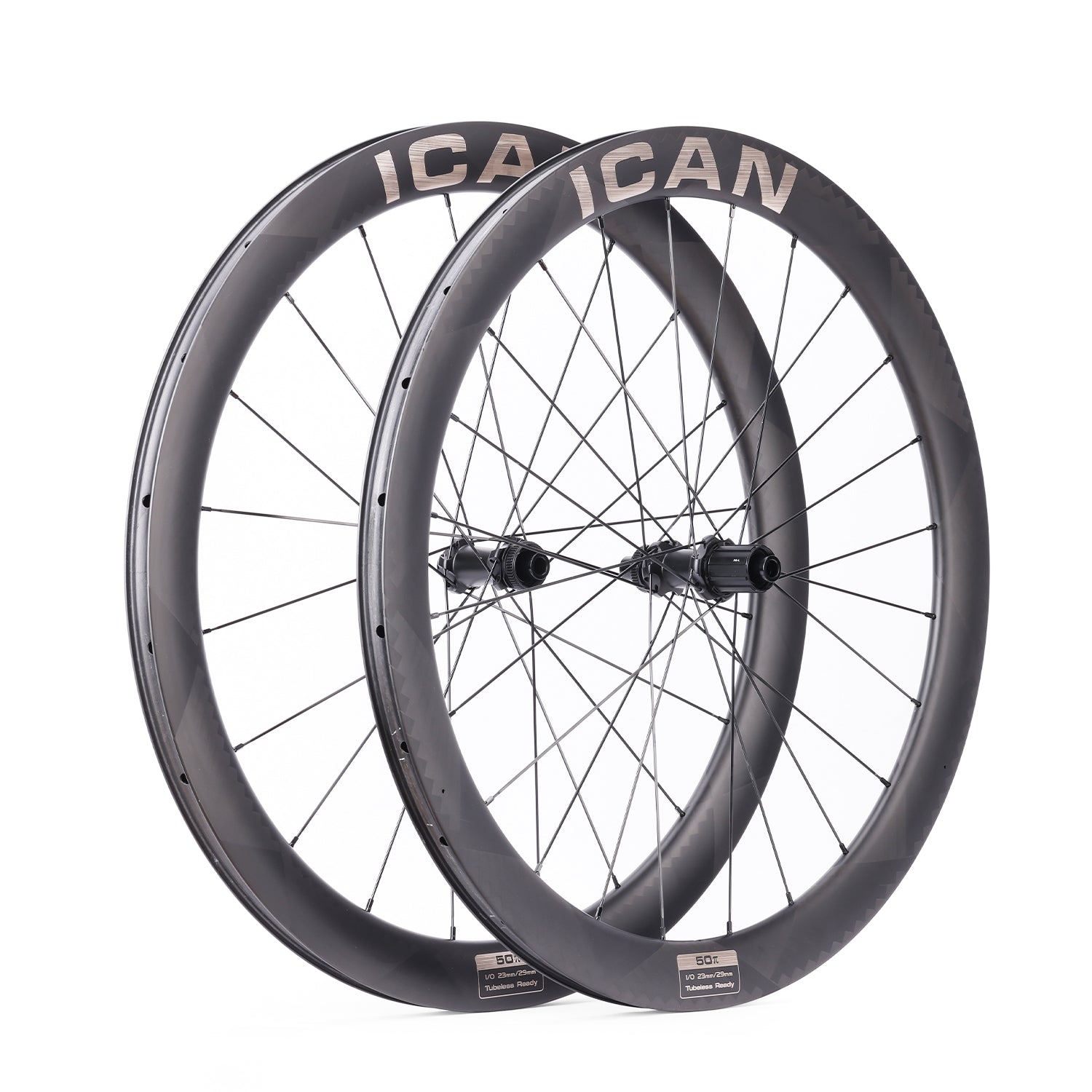

This 50mm rim depth wheelset features a Toray T700 & T800 carbon fiber hybrid weave, with 12K carbon fiber wrapped around the rim to create a three-dimensional diagonal pattern. The rims feature a hooked edge design, compatible with clincher and tubeless tires, and a 23mm inner width provides better tire support. It's equipped with D19 hubs, a center-lock disc brake, and S&S stainless steel bearings for smooth and durable performance. The spokes are Pillar SA1423, with a 20-hole front and 24-hole rear lacing, achieving a balance between stiffness, weight, and aerodynamics, making it suitable for both general road use and racing.


Specification
Type  Carbon Disc Wheelset
Rims  Superlight 50mm 12K Filament-wound
Material  100% Carbon Fiber Toray T700 & T800
Size  700C
Rim

 Drills: 20/24 Holes
 Outer Width: 27.8mm

 Inner Width: 23mm
Depth  50mm
Profile

 Clincher Tubeless Ready
Hub

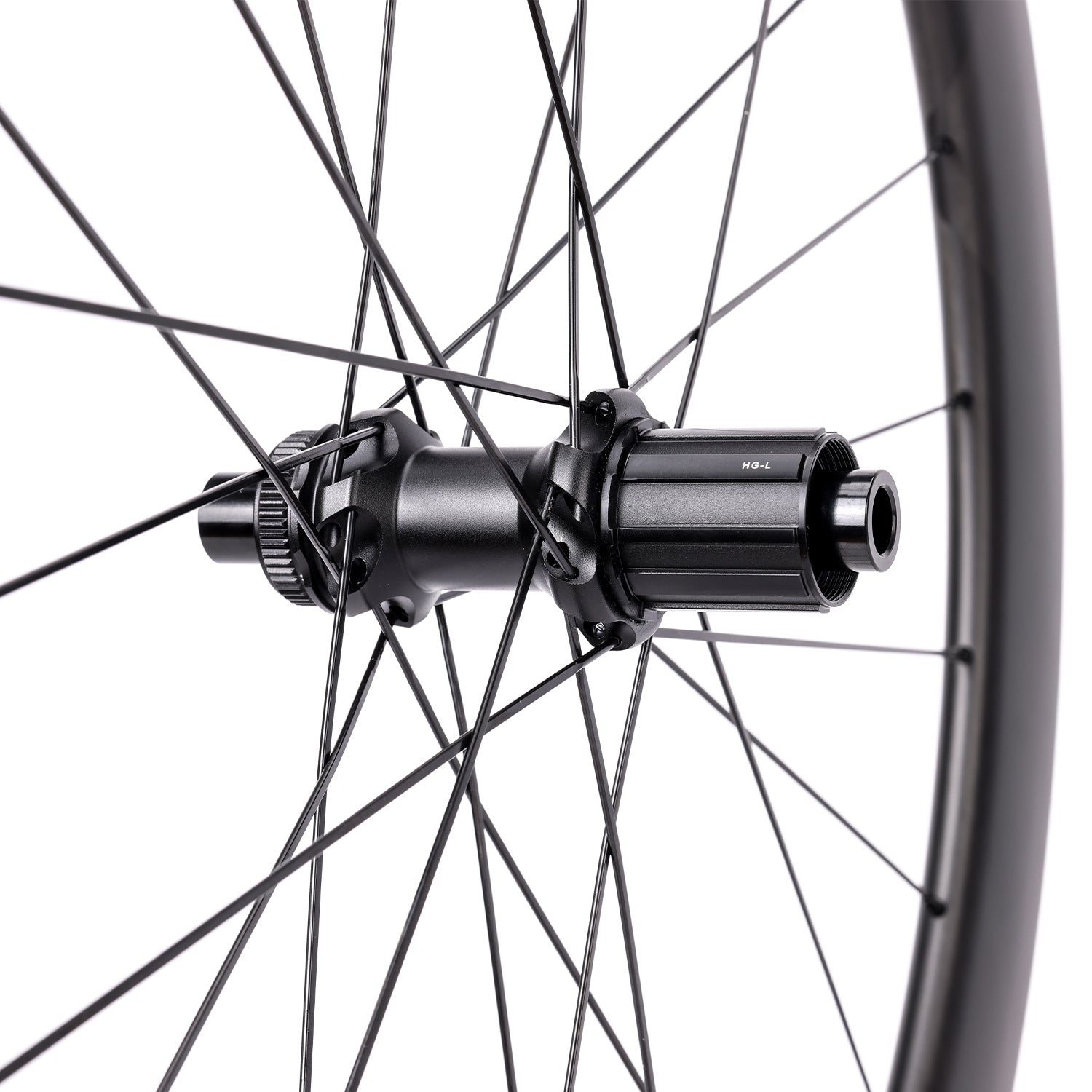

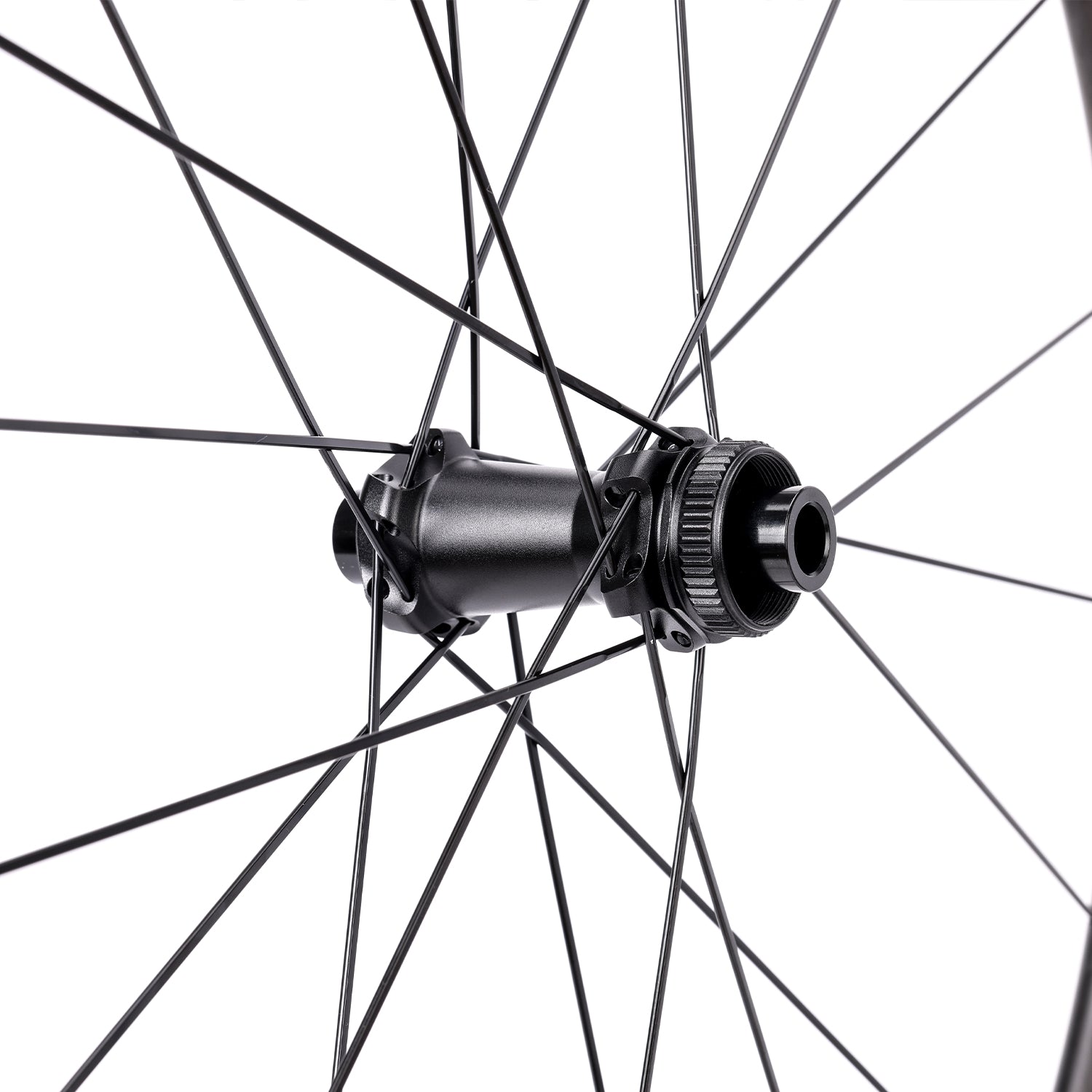

 ICAN D19 Hubs with S&S steel bearing

 Centerlock, Front: 12x100mm   Rear:12x142mm
Spoke  Pillar SA1423
Spoke Count  Front: 20   Rear: 24
Spoke Pattern  Front:  2 cross
 Rear:  2 cross
Nipple  Alloy  Color: Black
Cassette Compatibility

 Shimano 10/11/12 Speed

Sram XDR
Wheelset Weight

 Total: 1558+-20g

(Centerlock, 12x100/12x142mm)

 Front: 711+-10g Rear: 847+-10g
Braking Surface  No Braking Surface
Recommended Tyre Size  700 x 25-47mm
Rider Weight Limit  110kg
Guarantee  2 years
Package Included

A pair of Wheelset

Rim tape

Valves
Packing Size  81.5cm x 17cm x 65.5cm

Reviews
Shipping & Return

Warranty Policy

Every ICAN frame and rim has a useful product life cycle. Each bike, frame and rim will have a unique identification number and warranty card. Complete the provided card and warranty form, and send them to us. Failure to use the provided warranty card will void your warranty. Save your dated receipt for proof of purchase.

Product Group:

Frame and Rim

Applies to all ICAN and Triaero brand bike frame, and FL Max series, AERO Series, and Alpha series rim.

Coverage:

2-year warranty from the date of purchase.

Conditions:

  1. If any manufacturing defect occurs within 30 days of the date of purchase, is obligated to replace the rim(s) and also pay for the shipping cost. If any manufacturing defect occurs after 31 days and up to 2 years, ICAN is obligated to replace the product(s). The product owner is responsible for shipping costs.
  2. If we no longer make the rim you purchased we’ll upgrade you to the newest equivalent model at no extra cost.
  3. The Warranty program is not transferable and only applies to the initial purchaser.

This warranty does not cover：

  • Normal wear and tear (bearings, spokes, nipples, brake tracks, tires, inner tubes, pawls, freehub, seals, rim tape etc.)
  • Products which have been incorrectly installed and/or adjusted.
  • Issues brought about by neglect or poor maintenance.
  • Surface finish and cosmetic treatments (anodizing, decals, etc.)
  • Crash damage.
  • Consequential or incidental damages (where applicable)
  • Products purchased “second-hand”, “used”, “as-is”, or expressly “without warranty”
  • Counterfeit products
  • Unauthorized modification or alteration, including without limitation, any repair performed by anyone other than ICAN or an ICAN-authorized servicer, or outside of the recommendations of ICAN Customer Service

Tips:Please contact the official support of ICAN at the first time when you find a quality problem. Please do not repair our products privately, otherwise we will not bear any warranty.

The following will void your warranty

  • Misuse (Jumping, trick riding, etc.)
  • Modification of wheels
  • Tire pressure exceeding 140psi
  • Improper assembly
  • Installation of parts or accessories not originally intended for, or not compatible with the wheelsets sold.
  • Use of brake pads not designed for carbon wheels
