Available Painted Enduro MTB Frame P9
- $819.00
- $819.00
Specs
| Material | 100% Carbon Fiber Toray T700 & T800 |
|---|---|
| Frame Model | 29ER Full Suspension Enduro frame P9 |
| Weave | UD Matt/Painting |
| Available Size | XS/S/M/L |
| Design Wheel/Tire Size | 27.5 x 3.0" or 29 x 2.3" |
| Travel | 150mm |
| Rear Rock size | 210 x 55mm |
| Headset-Upper | 1-1/8" |
| Headset-Lower | 1-1/2" |
| Seatpost | 30.9mm |
| Dropper Compatible (Routing) | Yes, internal |
| Bottom Bracket | BSA |
| Rear Spacing | 148 x 12mm |
| Bottle Mounts | 1 per frame |
| Disc front and rear | 160mm, DB3 or DB5 |
| Frame Weight | 2400+-20g |
| IN THE BOX | Frame,thru-axle |
What brand of rear shock can the ICAN P9 frame match with?
According to the customer's assembly feedback, the shock brands we can currently support :
RockShox:
Recommended model:
RockShox Deluxe Ultimate 210 x 55mm Rear Shock
Eye-to-eye：22.2x8mm
FOX:
FOX FLOAT X2 /FOX DHX2 COIL/FOX FLOAT X
Suggested configuration from customer:
He wrote a brief setup of what I did lower in the thread:
Fox DPX2 Performance Elite 210x55
Mounting hardware
: M8x30mm and M8x25.15 (removed all ICAN spacers included in the temp plastic piece that comes from the factory).
For the torque
: I just used the 10-12Nm that are spec'd on the other bolts in the suspension system.
FOX DPX2 FACTORY 210X55
FOX Mounting Hardware: 8mm x 21.84
Fox Performance Float dpx2 210x55 tune id DZC6
Marzocchi: MARZOCCHI BOMBER CR COIL
Recommended model:
8.5" x 2.5" Marzocchi Bomber CR Coil Shocks
See the use case here
Features
1.The Wider Rear Boost Spacing:148x12mm.
2.Full Toray T700 or T800 carbon fiber bike frame, the basic factor for light and stiff.
3.The BSA Bottom Bracket, fit for more speed crank.
4.The 150mm travel set. Perfect shock absorption structure
Have you spent lots of time picking up one satisfied enduro MTB frame? Hard to find one that is stiff, light, better shock absorption, but affordable enduro MTB frame?
ICAN P9 enduro bike frame won’t let you down, it is constructed out of Toray T700-T800 carbon fiber, full carbon fiber frame to keep the best balance of lightness and stiffness, since ICAN P9 push into the market, they have never met quality problem among riders.
To bring you much more riding pleasure, we use the wider rear boost spacing, 148 x 12mm and 150mm travel, to keep the stiffness of the MTB bike frame and the high speed. you have more choice for wheelset and tires. The great enduro bike frame doesn’t need to be so expensive.
Fancy slaying your local enduro and proving that you are the best local trail slayer? Well, our carbon fiber full-suspension boost mountain bike frame the P9 is the bike frame that you need. With 150mm of travel you can be sure that there is no course too gnarly for this frame, the question is, are you gnarly enough to accept the challenge?
Constructed out of Toray T700 carbon fiber, you can be sure that this high modulus weave will not leave you asking for more. We have used Toray fibers as we find them to be the best in the industry for use in bicycle frame construction. With Toray, we can make the light, stiff, strong, and affordable frame that the industry does not want to admit can exist but we specialize in.
To keep this frame ever-reliable we have used the rear boost spacing, 148 x 12mm, to allow us to widen the frame’s rear end. This has the effect of stiffening the frame and giving your pivot bearings a longer life. To go with this, we have fitted an ever reliable BSA bottom bracket; you will spend less time fettling and more time riding. We have also fitted a tapered headtube so that you can be sure that your fork of choice will fit.
Our internal cable and hose routing also adds to this reliability and once set up you will wonder why you thought internal routing could be complicated. Now all you have to do is pick your color, black, white, green, blue or red, and get out and ride.

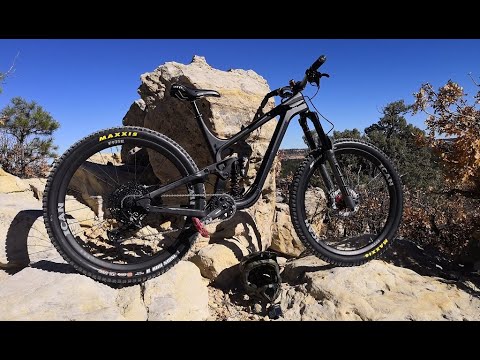

Euduro bike frame P9 picture
Why choose the 150mm travel suspension frame
150mm travel might be the sweet spot for around mountain bike riding and a spot of enduro racing. What though if we told you that you could have a nice 150mm travel bike and it will not weigh the earth and more importantly it could be a carbon fiber frame that will leave you money for the post-ride latte?
Thanks to the hard work of our team of engineers now you can. We have sculpted this full suspension mountain bike frame out of the excellent Toray T700 carbon fiber. We use Toray as its quality is assured and our engineers are so skilled in its use that we can build lightweight frames with some of the best touches.
As you can imagine we have used internal routing to make sure that all your cables and hoses are hidden away from the environment and accidental snagging on the trees surrounding your romps through the woods.
To help you pedal up hills, we have fitted this enduro frameset with a BB92 shell. This has allowed our engineers to widen and stiffen the frame. Making pedaling a more pleasurable activity. However, all these great features would not matter if you could not get this frame in a color that you like. As such we have them available in matte black, green, yellow, purple, or blue. Now all you need to do is work out which frame matches your helmet, and you are good to go.
